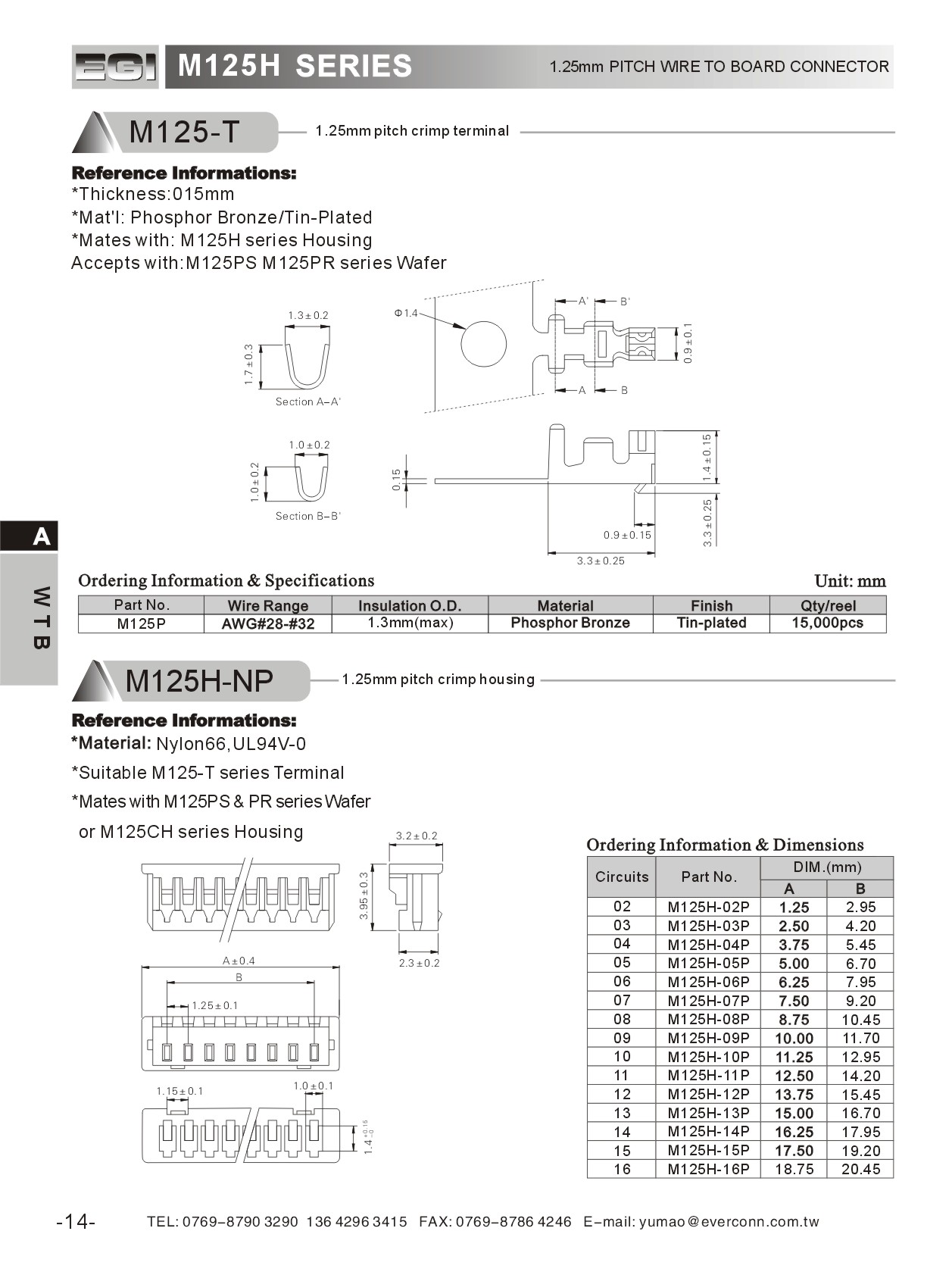

M125(MOLEX51021)
额定电流:1A AC,DC
额定电压:30V AC,DC
温度范围:-25℃~+85℃
接触电阻:最大20mΩ
绝缘电阻:最小100mΩ
耐受电压:500V AC/分钟
适用线号:AWG#28-#32
Current rating: 1A AC,DC
Voltage rating: 30V AC, DC
Temperature range: -25 ℃ to+85 ℃
Contact resistance: maximum 20m Ω
Insulation resistance: minimum 100m Ω
Withstand voltage: 500V AC/min
Applicable wire: AWG#28-#32
