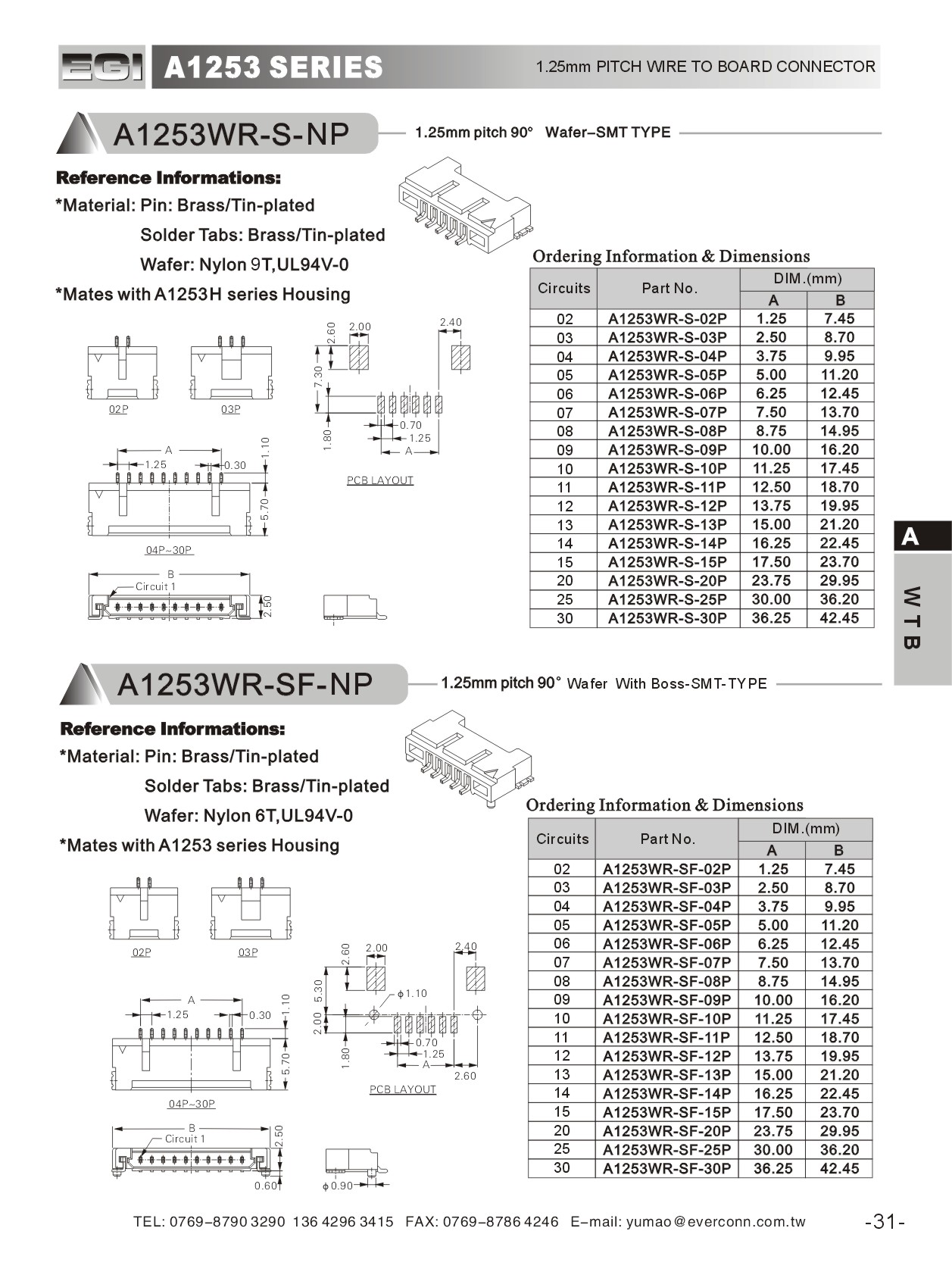

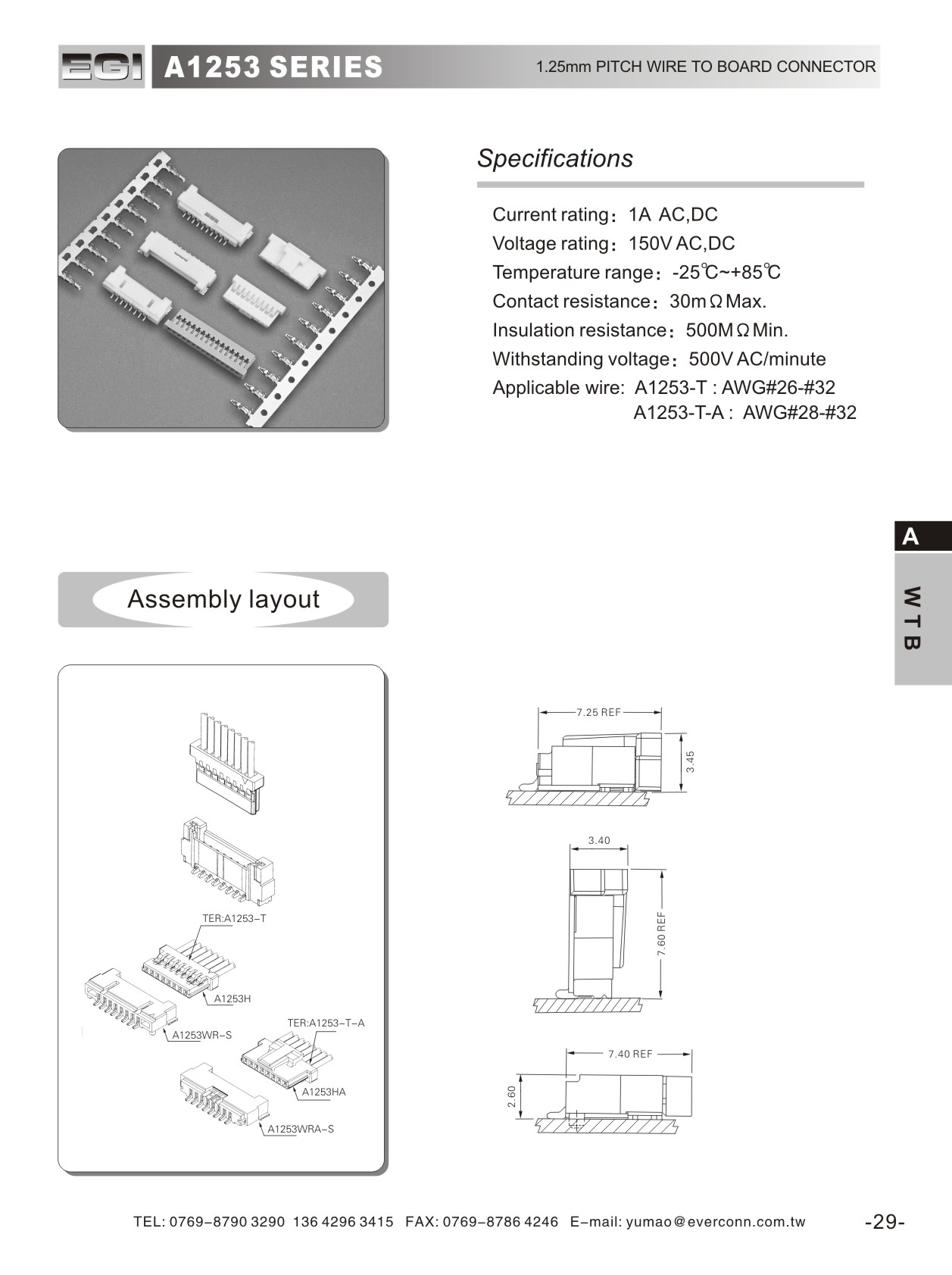

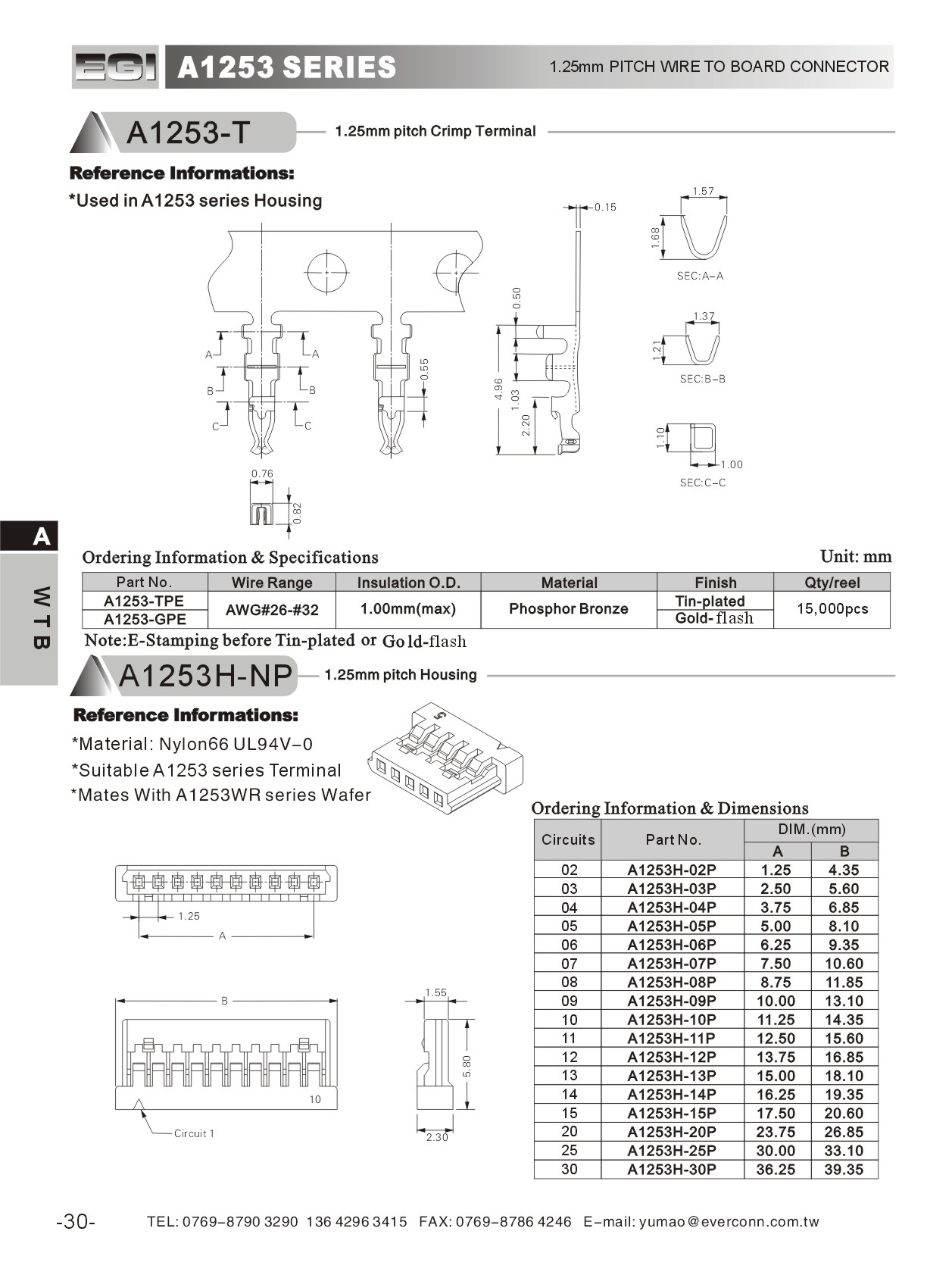

A1253(H14/DF14)
额定电流：1A AC，DC
额定电压：150V AC，DC
温度范围：-25℃～+85℃
接触电阻：最大30mΩ
绝缘电阻：最小500mΩ
耐受电压：500V AC/分钟
适用线号：AWG#26-#32
Current rating: 1A AC,DC
Voltage rating: 150V AC, DC
Temperature range: -25 ℃ to+85 ℃
Contact resistance: maximum 30m Ω
Insulation resistance: minimum 500m Ω
Withstand voltage: 500V AC/min
Applicable wire: AWG#26-#32
