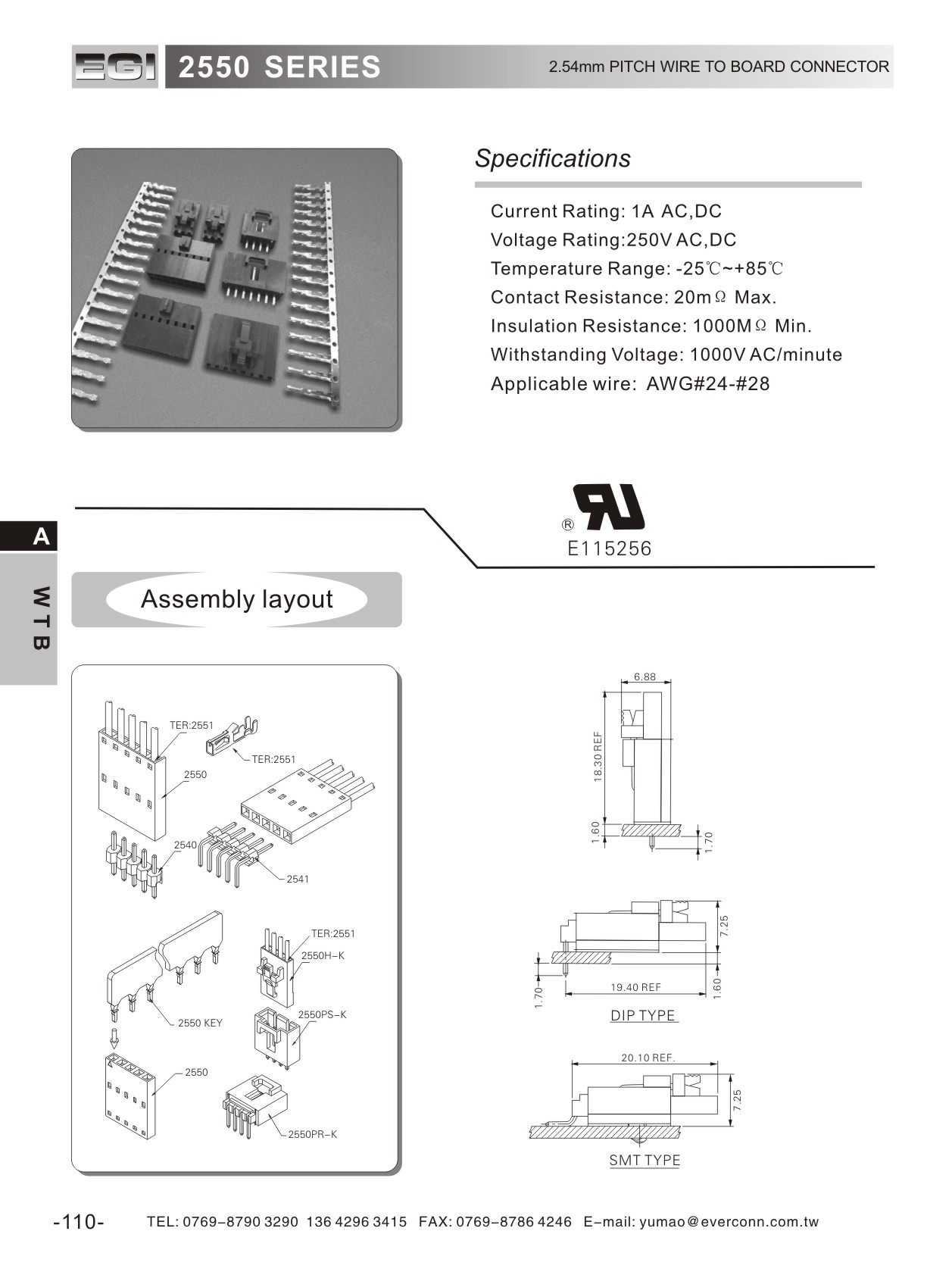

2550（MOLEX2.54超薄/CDROM)
额定电流：1A AC，DC
额定电压：250V AC，DC
温度范围：-25℃～+85℃
接触电阻：最大20mΩ
绝缘电阻：最小1000mΩ
耐受电压：1000V AC/分钟
适用线号：AWG#24--#28
Current rating: 1A AC,DC
Voltage rating: 250V AC, DC
Temperature range: -25 ℃ to+85 ℃
Contact resistance: maximum 20m Ω
Insulation resistance: minimum 1000m Ω
Withstand voltage: 1000V AC/min
Applicable wire: AWG#24-#28
