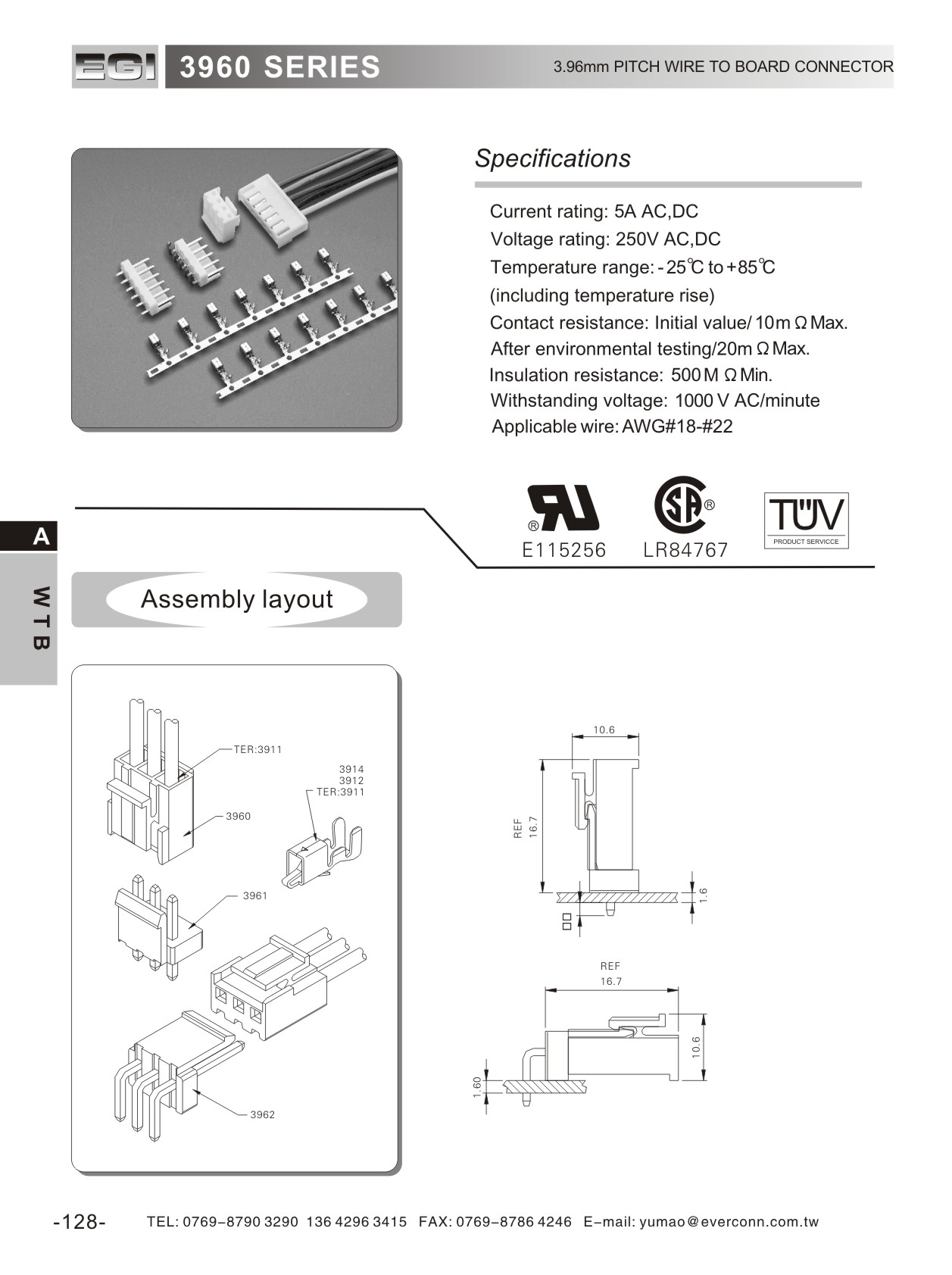

3960/3911（JST SVH3.96)
额定电流：5A AC，DC
额定电压：250V AC，DC
温度范围：-25℃～+85℃
接触电阻：最大10mΩ
绝缘电阻：最小500mΩ
耐受电压：1000V AC/分钟
适用线号：AWG#18--#22
Current rating: 5A AC,DC
Voltage rating: 250V AC, DC
Temperature range: -25 ℃ to+85 ℃
Contact resistance: maximum 10m Ω
Insulation resistance: minimum 500m Ω
Withstand voltage: 1000V AC/min
Applicable wire: AWG#18-#22
