3015/3016(MOLEX3.0)
额定电流：5A AC，DC
额定电压：250V AC，DC
温度范围：-25℃～+85℃
接触电阻：最大10mΩ
绝缘电阻：最小1000mΩ
耐受电压：1500V AC/分钟
适用线号：AWG#20--#24

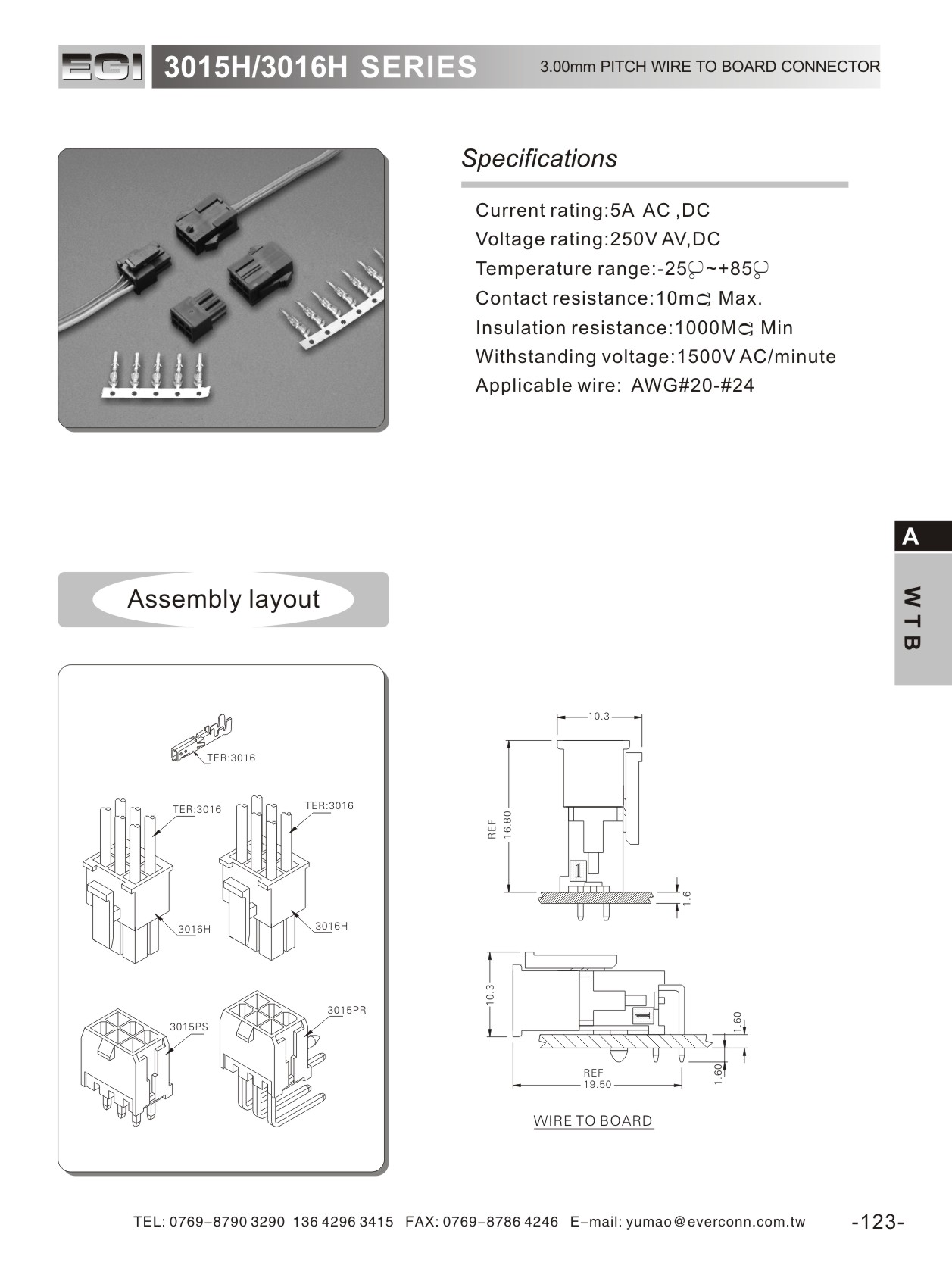

Current rating: 5A AC,DC
Voltage rating: 250V AC, DC
Temperature range: -25 ℃ to+85 ℃
Contact resistance: maximum 10m Ω
Insulation resistance: minimum 1000m Ω
Withstand voltage: 1500V AC/min
Applicable wire: AWG#20-#24
