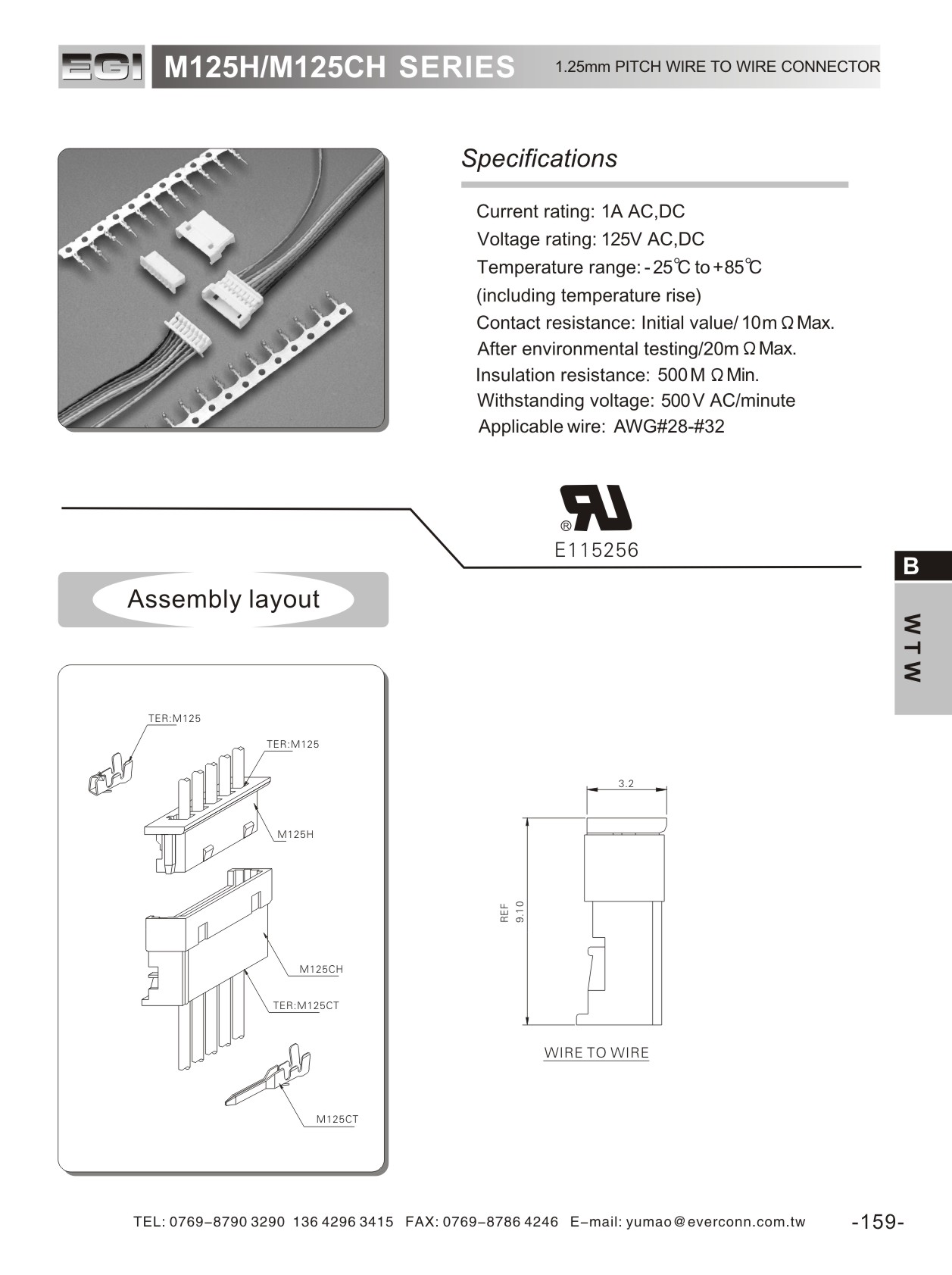

M125CH(molex1.25)
额定电流：1A AC，DC
额定电压：125V AC，DC
温度范围：-25℃～+85℃
接触电阻：最大10mΩ
绝缘电阻：最小500mΩ
耐受电压：500V AC/分钟
适用线号：AWG#28--#32
Current rating: 1A AC,DC
Voltage rating: 125V AC, DC
Temperature range: -25 ℃ to+85 ℃
Contact resistance: maximum 10m Ω
Insulation resistance: minimum 500m Ω
Withstand voltage: 500V AC/min
Applicable wire: AWG#28-#32
